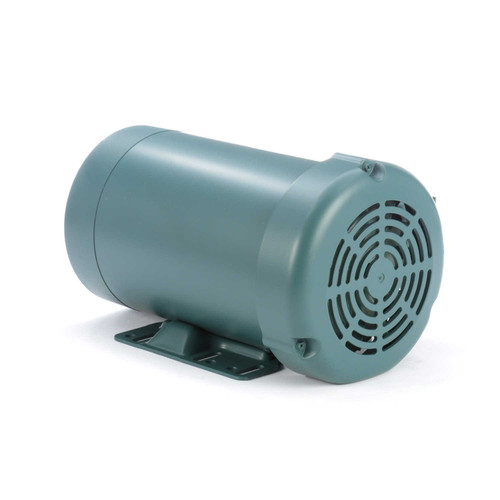

121929.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

Leeson

121929.00 Leeson | 3 hp 3600 RPM 145TC Frame TEFC C-Face (Rigid Base) 230/460V

(No reviews) Write a Review

$1,051.10

$891.14

SKU 121929.00

Shipping Free Shipping

Compliance Tab /content/product_tabs/p65warnings.html

ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM

Voltage 230/460V

Horsepower 3 HP

RPM 3600

Phase Three Phase

Frame 145TC

Enclosure TEFC

Hertz 60 Hz

Amperage 8.0/4.0 Amps

Bearings Ball Bearings

Service Factor 1.15

Insulation Class Class F

Mounting C-Face

Current Stock:

Qty

Adding to cart… The item has been added

Description
Specifications

Description

3 hp 3600 RPM, 8.0/4.0 amps 230/460 Volts 60hz. Three Phase Motor
NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
Service Factor: 1.15 - overload protection = None
Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has threaded bolt holes on face for mounting a pump or gear head to the motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C145T34FK43B, 121929.00, Replaces G120991.00

Specifications

Compliance Tab	/content/product_tabs/p65warnings.html
ON SALE	DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage	230/460V
Horsepower	3 HP
RPM	3600
Phase	Three Phase
Frame	145TC
Enclosure	TEFC
Hertz	60 Hz
Amperage	8.0/4.0 Amps
Bearings	Ball Bearings
Service Factor	1.15
Insulation Class	Class F
Mounting	C-Face
