2574 Nidec | 1 hp 1725/1140 RPM 2-Speed 115V; 6.5" Blower Motor

2574 Nidec | 1 hp 1725/1140 RPM 2-Speed 115V; 6.5" Blower Motor

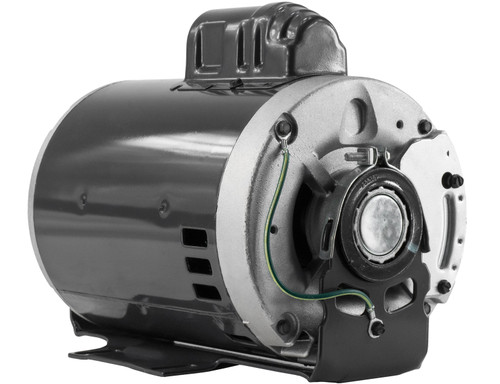

This 1 horsepower Nidec blower motor is designed for evaporative cooler applications, offering reliable two-speed operation to replace compatible motors. It provides efficient performance with reversible rotation and continuous duty capability.

Key Specifications

• Horsepower: 1 hp
• RPM: 1725/1140 (2-Speed)
• Voltage: 115V
• Amperage: 12.4/6.1 amps
• Enclosure: Open Drip Proof

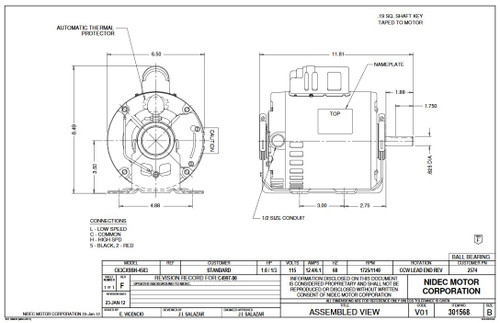

• Frame / Diameter: 6.5" diameter, 10.0" motor case length
• Shaft Dimensions: 5/8" x 1-7/8"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient ring base mount for secure installation and includes automatic overload protection for enhanced durability. It is capacitor start type with Class B insulation, rated for continuous duty in ambient temperatures up to 40°C at 60 Hz.

Warranty

1 Year Manufacturer Warranty
