120025.00 Leeson | 1 hp 1725 RPM 143T Frame TEFC 115/208-230 Volts

120025.00 Leeson | 1 hp 1725 RPM 143T Frame TEFC 115/208-230 Volts

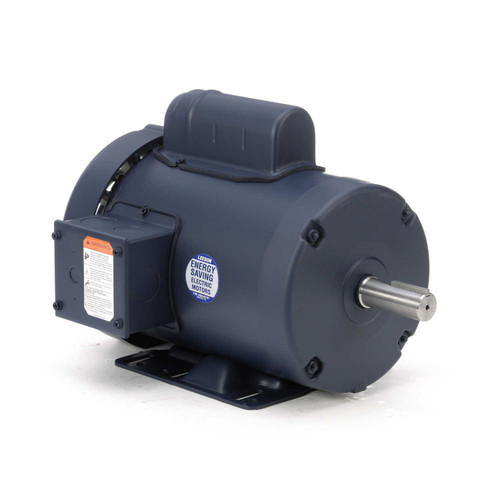

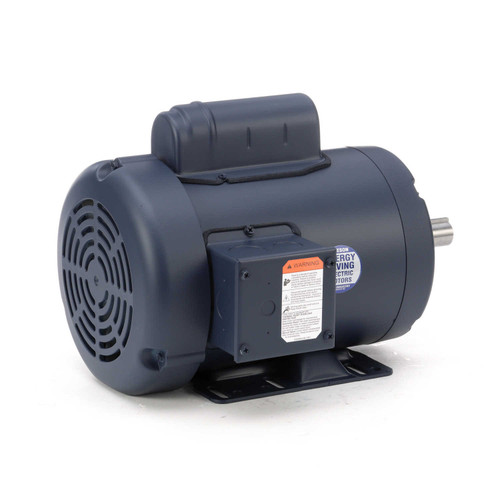

This Leeson 1 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It replaces similar 1 hp motors and is ideal for various industrial and HVAC equipment.

Key Specifications

• Horsepower: 1 hp
• RPM: 1725
• Voltage: 115/208-230 Volts, 60 Hz
• Amperage: 12.8/6.4 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

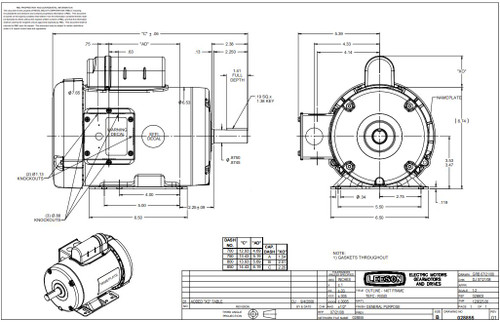

• Frame / Diameter: NEMA 143T Frame
• Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It operates with Class B insulation and has a service factor of 1.15. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
