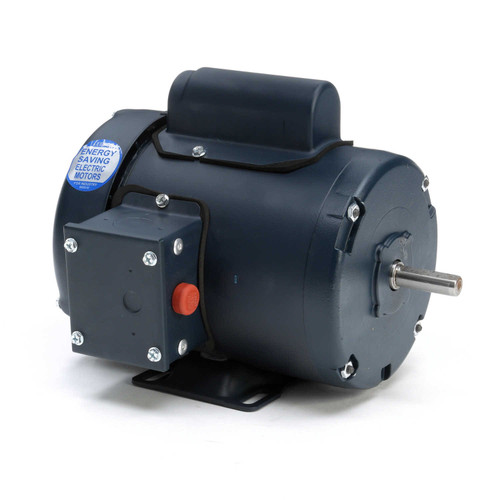

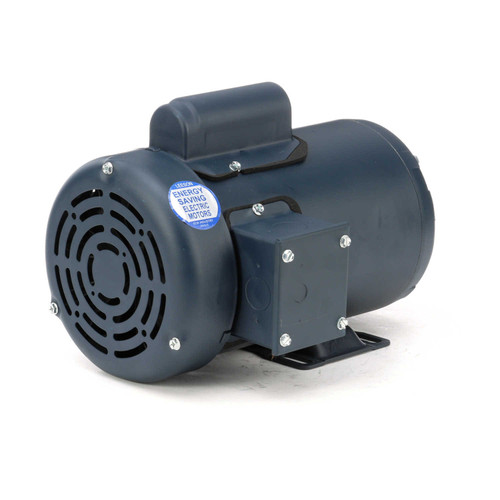

102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts
102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts

Leeson

102018.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts

(No reviews) Write a Review
$488.75
$402.44
SKU 102018
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/3 HP
RPM 1725
Phase Single Phase
Frame 48
Enclosure TEFC
Hertz 60 Hz
Amperage 6.6/3.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 1725 RPM, 6.6/3.3 amps 115/208-230 Volts 60hz. single Phase Motor
  • NEMA 48 Frame Keyed Shaft 1/2" Diameter x 1 1/2"
  • Service Factor: 1.15 - overload protection = Manual
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor. Motor has a rigid base mount with a keyed shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

M4C17FB22C, 102018.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/3 HP
RPM 1725
Phase Single Phase
Frame 48
Enclosure TEFC
Hertz 60 Hz
Amperage 6.6/3.3 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
