100955.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts

100955.00 Leeson | 1/3 hp 1725 RPM 48 Frame TEFC 115/208-230 Volts

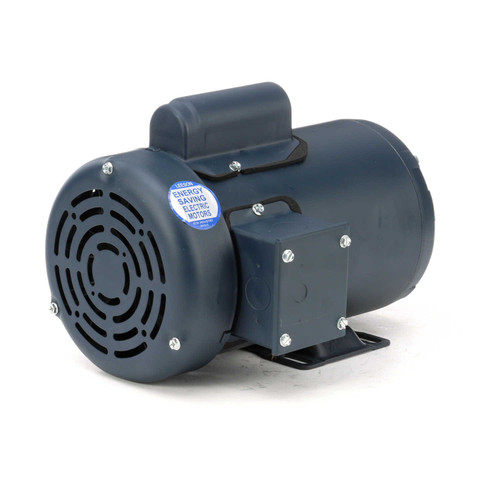

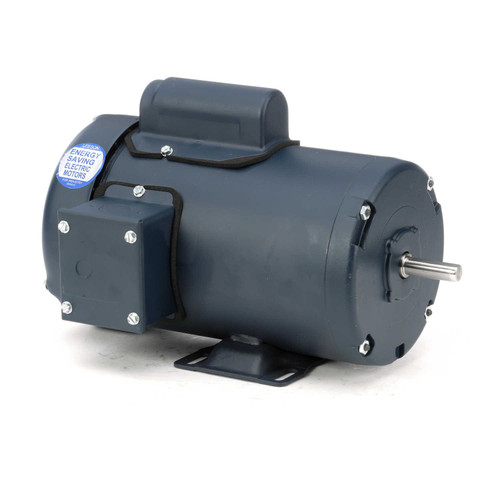

This Leeson 1/3 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It is a direct replacement motor suitable for various industrial and HVAC equipment.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1725
• Voltage: 115/208-230 Volts, 60 Hz
• Amperage: 6.6/3.3 Amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

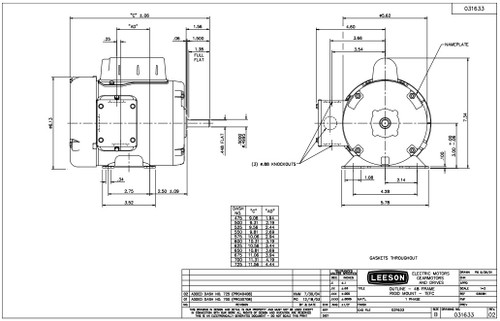

• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1/2" Diameter x 1 1/2" Length with Flat
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with a keyed shaft for secure installation. It includes Class B insulation and a service factor of 1.15, though it does not have built-in overload protection. The wiring diagram is conveniently located on the motor nameplate for easy setup.

Warranty

1 Year Manufacturer Warranty
