110088.00 Leeson | 1 hp 1725 RPM 56 Frame TEFC (Farm Duty)115/208-230 volts

110088.00 Leeson | 1 hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230 Volts

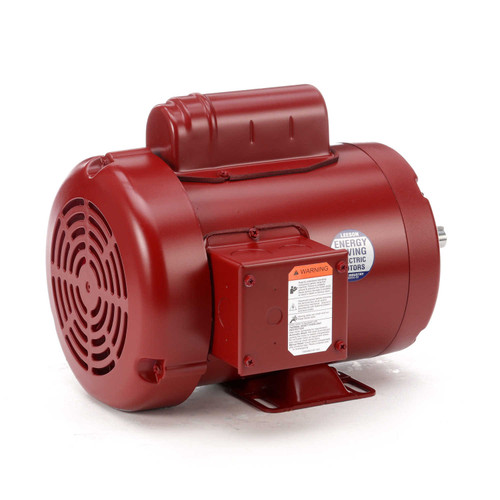

This single-phase Leeson Farm Duty motor delivers 1 horsepower at 1725 RPM and is designed for demanding agricultural and industrial applications. It is a direct replacement for Marathon F104 and Leeson Model M6C17FB10L, suitable for environments exposed to dust, dirt, and oil.

Key Specifications

• Horsepower: 1 hp
• RPM: 1725
• Voltage: 115/208-230 volts
• Amperage: 14.0/7.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

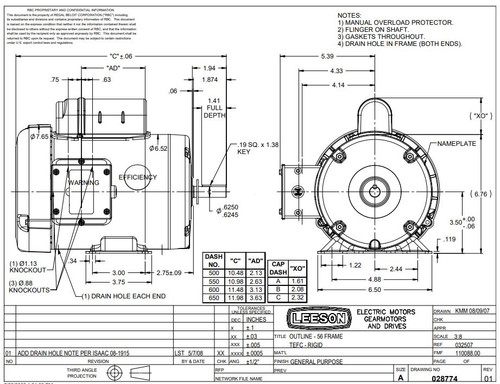

• Frame / Diameter: NEMA 56 Frame, flat rigid base mount
• Shaft Dimensions: 5/8" diameter x 1 7/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This motor features a manual overload protection and a service factor of 1.15, enhancing durability under heavy loads. The NEMA 56 frame includes a flat base with four mounting holes (3" x 5" spacing) for straightforward installation. Farm duty enhancements include double-sealed bearings with Exxon grease rated for -20°F to +350°F, a gasketed junction box and capacitor covers, and a rubber boot over the reset button for added protection against harsh environments.

Warranty

• DATA SHEET
