110087.00 Leeson | 3/4 hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230 volts

110087.00 Leeson | 3/4 hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230 Volts

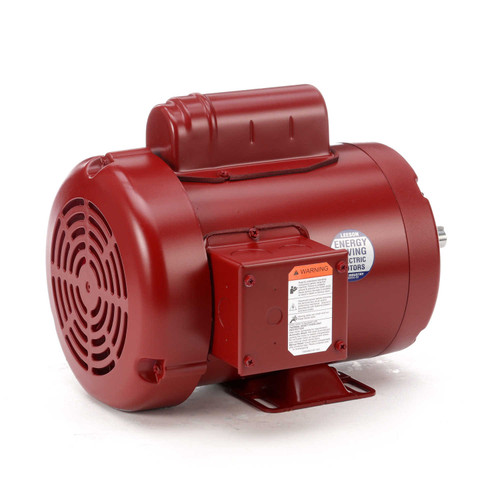

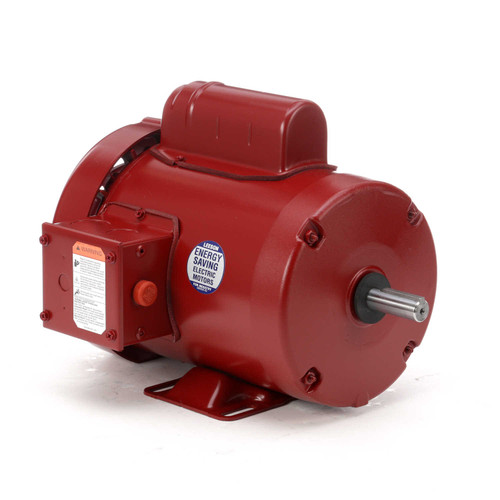

This Leeson 3/4 horsepower, 1725 RPM motor is designed for demanding industrial and agricultural applications. It replaces standard motors requiring a robust, farm duty unit with high starting torque and reliable performance in harsh environments.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/208-230 volts, 60 Hz
• Amperage: 10.8/5.4 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length
• Rotation: Electrically reversible
• Bearings: Ball bearings with low temperature grease

Product Features & Fitment

This farm duty motor features a flat rigid base mount with a standard NEMA 56 frame and 3" x 5" mounting hole spacing for easy installation. It includes manual overload protection and a gasketed junction box and capacitor covers to enhance durability. Double sealed bearings with Exxon grease allow operation in temperature ranges from -20°F to +350°F, making it ideal for environments exposed to sawdust, dirt, oil, and other contaminants. A rubber boot over the reset button provides additional protection against moisture and debris.

Warranty

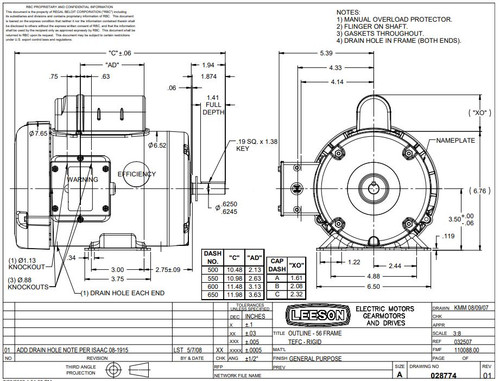

• Dimensional Drawing
