110013.00 Leeson | 3/4 hp 1725 RPM 56 Frame TEFC 115/208-230 Volts

110013.00 Leeson | 3/4 hp 1725 RPM 56 Frame TEFC 115/208-230 Volts

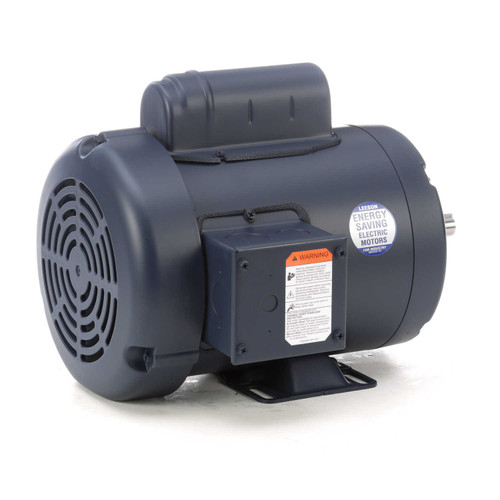

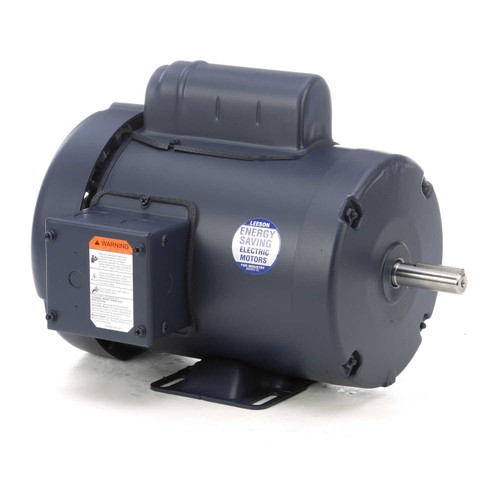

This Leeson 3/4 horsepower single-phase electric motor is designed for general-purpose applications requiring reliable performance. It replaces similar 56 frame motors and is suitable for various industrial and HVAC uses.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1725
• Voltage: 115/208-230 Volts
• Amperage: 10.8/5.4 Amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56 Frame

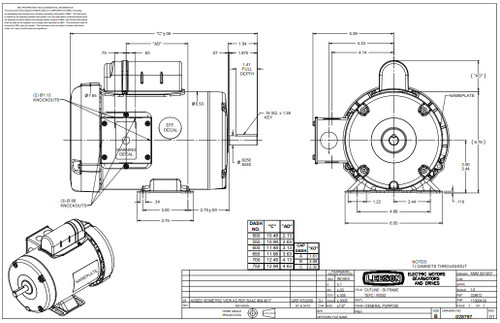

• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount for secure installation and includes a keyed shaft for reliable coupling. It operates on single-phase power at 60 Hz and includes a wiring diagram on the nameplate for easy setup. The motor is designed with Class B insulation and a service factor of 1.15, though it does not include built-in overload protection.

Warranty

1 Year Manufacturer Warranty
