120996.00 Leeson | 1 hp 1740 RPM 143JM Frame 115/208-230V ODP Close Couple Motor

120996.00 Leeson | 1 hp 1740 RPM 143JM Frame 115/208-230V ODP Close Couple Motor

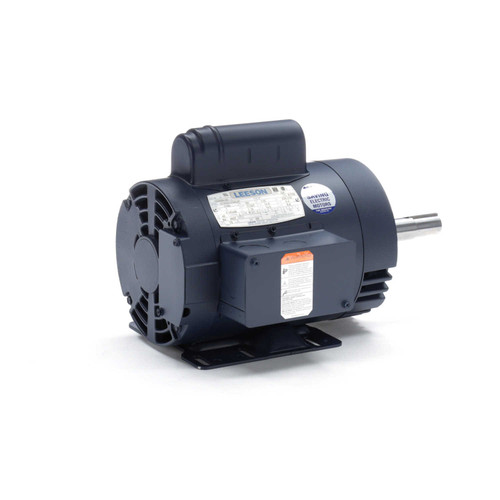

This Leeson close coupled pump motor is designed for continuous duty service on close coupled pumps. It replaces the Marathon Z401 and 143TCDR5328 models, providing reliable performance in industrial motor applications.

Key Specifications

• Horsepower: 1 hp
• RPM: 1740
• Voltage: 115/208-230V
• Amperage: 12.8/6.4 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: 143JM Frame

Product Features & Fitment

The motor features a rigid base and a NEMA JM pump shaft, ensuring secure mounting and compatibility with standard close coupled pumps. It includes a capacitor start and capacitor run design for efficient single-phase operation. The wiring diagram is conveniently located on the motor nameplate to assist with installation.

Cross Reference

• Marathon Z401, 143TCDR5328

Warranty

1 Year Manufacturer Warranty
