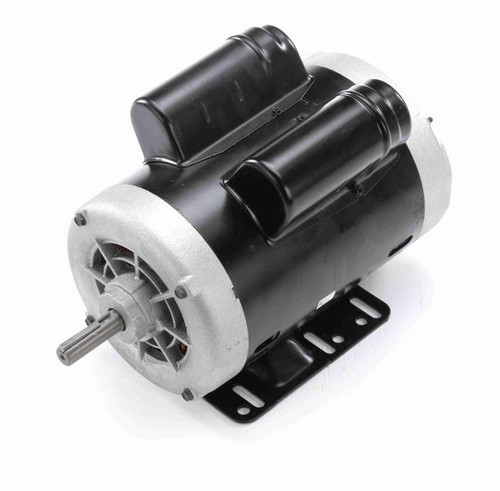

OB1104AV1ES Century 1 hp 1800 RPM 1-Phase 56 Frame ODP (rigid base) 115/230V Century Motor # OB1104AV1ES

OB1104AV1ES Century 1 hp 1800 RPM 1-Phase 56 Frame ODP (rigid base) 115/230V Motor

This Century 1 horsepower, 1800 RPM single-phase motor is designed for general-purpose applications requiring a reliable and efficient power source. It replaces similar motors with a NEMA 56 frame and is suitable for use in equipment with standard mounting and electrical requirements.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/230 V
• Amperage: 8.4/4.2 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base mount for stable installation and includes a keyed shaft for secure coupling. It operates on single-phase power with capacitor start/run and has Class B insulation for durability. Wiring diagrams are provided on the motor nameplate to assist with proper electrical connections.

Warranty

1 Year Manufacturer Warranty
