G841A Marathon 1 hp 1800 RPM 3-Phase 56C Frame TEFC (no base) 230/460V Marathon Motor

SKU:
G841A
Weight:
44.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $634.60
Now: $558.10
Adding to cart… The item has been added
  • 1 hp 1800 RPM, 3.2/1.6 amps 230/460 Volts 60 Hz. 3-Phase
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.0, Overload protection = Auto
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

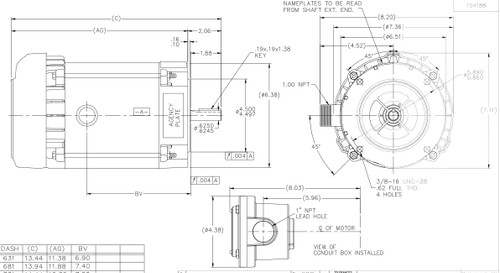

Explosion-Proof three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056T17G15599
