- 1 hp 1800 RPM, 1.3 amps 575 Volts 60 Hz. 3-Phase
- NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0, Overload protection = None
- Rigid Base, Reversible, Ball Bearings, Class H Insulation
- 1 Year Manufacture Warranty

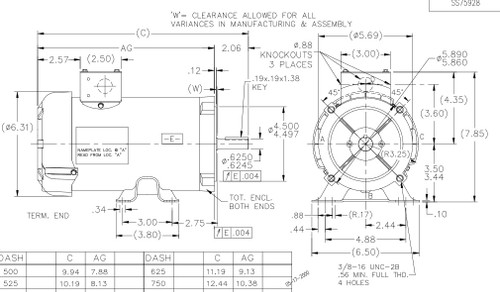

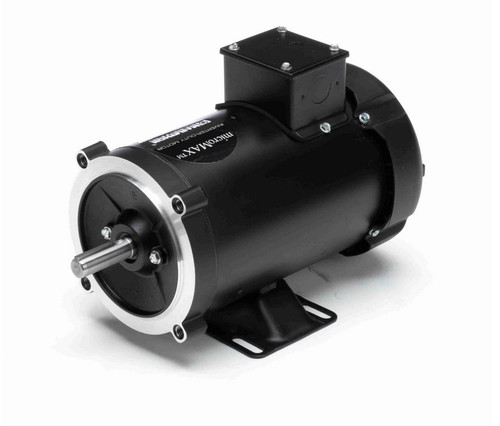

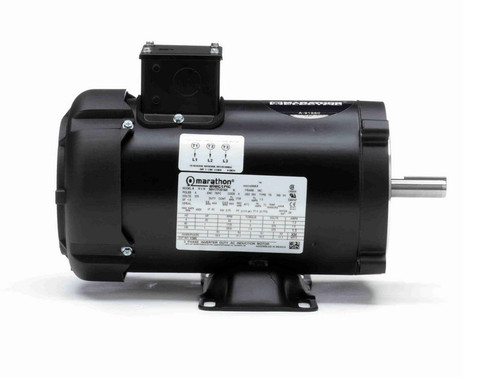

Inverter (Vector) duty three phase electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056H17F2019
