G373 Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
G373 Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
$662.52
$576.96
SKU
G373
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
TEFC
Hertz
60 Hz
Amperage
6.7 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
G373 Marathon 1 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
The Marathon G373 is a general-purpose, single-phase electric motor designed for versatile industrial applications. It replaces Leeson M6C17FB8K and 110023.00 models, providing reliable performance in various equipment setups.
Key Specifications
- Horsepower: 1 hp
- RPM: 1800
- Voltage: 115/208-230 V
- Amperage: 13.4/6.8-6.7 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 56 Frame

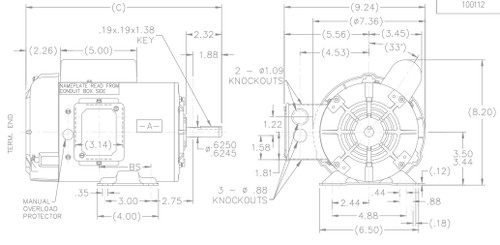

- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This capacitor start motor features a rigid base mount for straightforward installation and manual overload protection. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. The motor is built with Class B insulation for durability in demanding environments.
Cross Reference
- Leeson M6C17FB8K, 110023.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 6.7 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
- Leeson M6C17FB8K, 110023.00
