Description

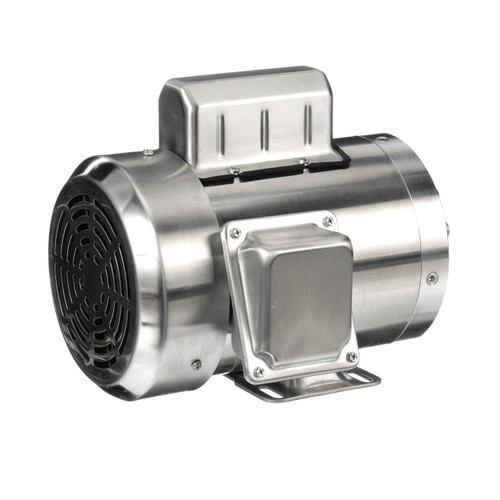

191479.00 Leeson | 1 hp 1800 RPM 56C 115/230V Stainless Steel w/Base

This Leeson 1 hp motor operates at 1800 RPM and is designed for industrial applications requiring reliable and durable performance. It replaces Marathon N345 and 56C17WD5329 models, featuring a stainless steel construction ideal for environments demanding corrosion resistance.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 115/230V, 60 Hz
Amperage: 13.6/6.8 amps
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 56C
Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Rotation: Reversible
Bearings: Double sealed bearings

Product Features & Fitment

The motor includes a rigid base mount for stable installation and is constructed with 300-series stainless steel on all exterior components for enhanced durability and corrosion resistance. It features a laser-etched full-fact nameplate on the motor frame and four quadrant drain locations in each endbell to facilitate moisture drainage and maintenance.
