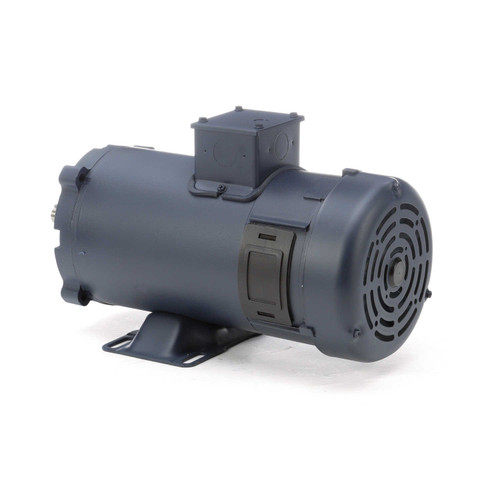

109102.00 Leeson | 1 hp 1800 RPM 56C Frame 48 Volts DC TEFC

109102.00 Leeson | 1 hp 1800 RPM 56C Frame 48 Volts DC TEFC

This Leeson 1 hp permanent magnet DC motor operates at 1800 RPM and 48 Volts DC, designed for low voltage applications such as battery or solar-powered systems. It is ideal for heavy load operations requiring high starting torque and precise speed control.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 48 VDC
• Amperage: 18.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. It includes sealed ball bearings for durability and supports reversible operation via a simple 2-lead connection. This motor offers linear speed/torque characteristics across the entire speed range and is capable of dynamic braking for faster stops. Compatible with Leeson speed control model 175292.

Warranty

1 Year Manufacturer Warranty
