112529.00 Leeson | 1 hp 1800 RPM 56C Frame (Rigid Base) C-Face 115/208-230V Wash Down Duty

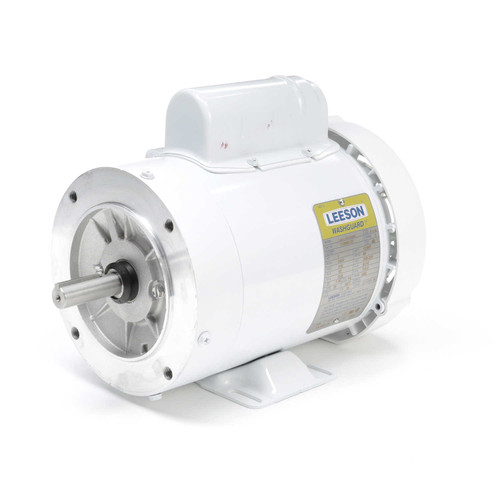

112529.00 Leeson 1 hp 1800 RPM 56C Frame (Rigid Base) C-Face Wash Down Duty Motor

This Leeson 1 hp single-phase motor operates at 1800 RPM and is designed for wash down duty applications. It replaces the Marathon N543, 056C17W5334 motor and is ideal for environments requiring moisture resistance and durability.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 12.8/6.4 A
• Enclosure: Washguard (Wash Down Duty)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

This motor features a rigid base and C-face mounting for versatile installation. It includes a stainless steel shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, seals, and four endshield drains to enhance moisture resistance. The IRIS insulation system and Class F insulation provide added durability in wash down environments.

Cross Reference

• Marathon N543, 056C17W5334

Warranty

1 Year Manufacturer Warranty
