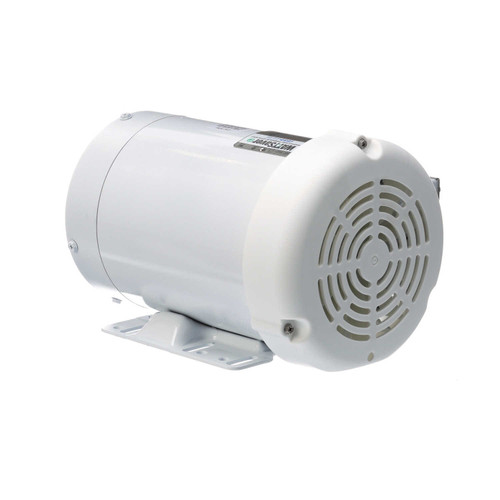

119476.00 Leeson | 1 hp 1800 RPM 56C Frame TEFC 208-230/460V Wash Down Duty
This Leeson 1 hp, 1800 RPM three-phase motor is designed for wash down duty applications, offering reliable performance in harsh environments. It replaces Leeson model 112524.00 and Marathon N602A / 56T17W99016 motors, making it suitable for direct replacement in compatible equipment.
Key Specifications
- Horsepower: 1 hp
- RPM: 1800
- Voltage: 208-230/460 V
- Amperage: 3.2/1.6 A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame / Diameter: NEMA 56C Frame
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Product Features & Fitment
This Leeson Washguard motor features a rigid base for secure mounting and is coated with durable Rust-Oleum white epoxy paint for corrosion resistance. It includes stainless steel components such as the shaft, conduit box cover, nameplate, and fan guard, along with special gaskets, slingers, and seals to enhance moisture resistance. Additional design elements include four endshield drains and moisture-resistant interior components with the IRIS insulation system, making it ideal for wash down environments.
Cross Reference
- 112524.00
- Replaces Marathon N602A, 056T17W99016
Warranty
1 Year Manufacturer Warranty
