108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty
108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty

Leeson

108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 volts DC Wash Down Duty

(No reviews) Write a Review
$1,301.80
$1,103.66
SKU 108230.00
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 90V
Horsepower 1 HP
RPM 1800
Frame 90
Enclosure TEFC
Amperage 10.0 Amps
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description

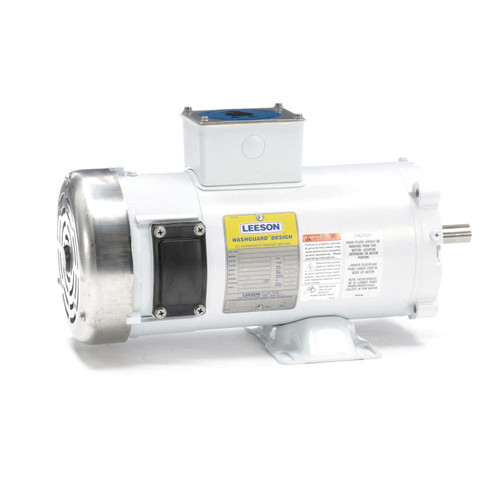

108230.00 Leeson | 1 hp 1800 RPM 56C TEFC Frame 90 Volts DC Wash Down Duty Motor

This Leeson 1 hp, 1800 RPM DC motor is designed for wash down duty applications requiring reliable performance and moisture resistance. It is a direct replacement motor featuring a robust construction suitable for industrial environments.

Key Specifications

  • Horsepower: 1 hp
  • RPM: 1800
  • Voltage: 90 Volts DC
  • Amperage: 10.0 amps
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Frame / Diameter: NEMA 56C Frame

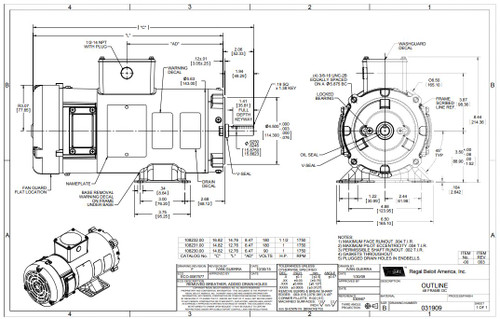

  • Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length

Product Features & Fitment

The motor includes a removable rigid base for flexible mounting options. It features Leeson's original moisture-shedding design with durable Rust-Oleum white epoxy paint, stainless steel shaft, conduit box cover, nameplate, and fan guard. Special gaskets, slingers, seals, and four endshield drains provide enhanced moisture resistance. The motor is compatible with Leeson speed controls models 174102, 174107, and 174307.

Warranty

1 Year Manufacturer Warranty

Warranty Information
1 Year Manufacturer Warranty
Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 90V
Horsepower 1 HP
RPM 1800
Frame 90
Enclosure TEFC
Amperage 10.0 Amps
Service Factor 1.0
Insulation Class Class F
Mounting Rigid Base
!
