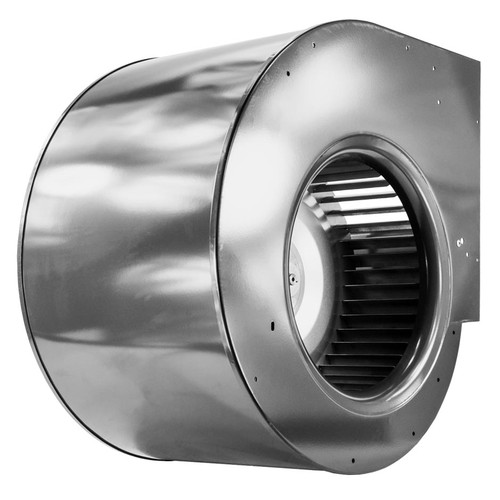

1 hp 3-Speed 115V Dayton 1XJY3 Direct OEM Interchange Furnace Blower with Housing Assembly & Motor

1 hp 3-Speed 115V Dayton 1XJY3 Direct OEM Interchange Furnace Blower with Housing Assembly & Motor

This is a direct OEM aftermarket replacement furnace blower assembly designed to fit Dayton 1XJY3 models. It is intended for use in heating, air conditioning, and ventilation systems, providing reliable airflow with a 3-speed motor.

Key Specifications

• Horsepower: 1 hp
• RPM: 1100
• Voltage: 115 V
• Amperage: 15.3 A
• Enclosure: Open Ventilated PSC Electric Motor
• Frame / Diameter: 13" wheel diameter
• Rotation: Discharge can be rotated in four 90-degree increments (non-reversible)
• Bearings: Ball bearing

Product Features & Fitment

This furnace blower assembly includes the motor, blower housing, and blower wheel, all constructed with heavy-gauge painted steel housing and corrosion-resistant steel wheels. The PSC motor features automatic overload protection and insulation class B, with a maximum inlet/ambient temperature rating of 104°F. The blower is not recommended for speed control and does not include a power cord or on/off switch. Installation should be performed by a certified technician, ensuring power is turned off before replacement. This product is model-specific; verify compatibility before purchase.

Warranty

1 Year Manufacturer Warranty
