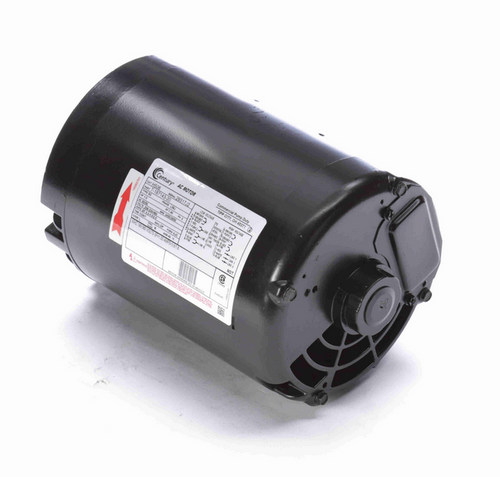

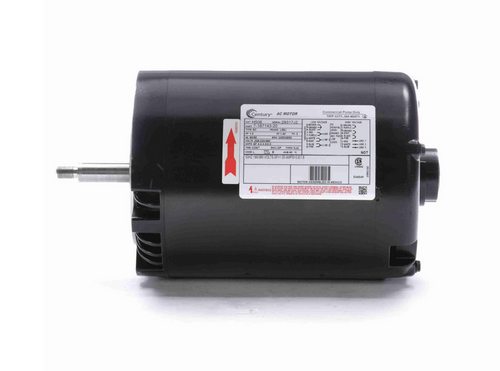

H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506
H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506

Century Electric Motor

H506 Century 1 hp 3600/2850 RPM 3-Phase 56J Frame ODP (no base) 208-230/460V Century Pump Motor # H506

(No reviews) Write a Review
$460.00
$448.44
SKU UH506
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56J
Enclosure ODP
Hertz 60 Hz
Amperage 4.0/2.0 Amps
Bearings Ball Bearings
Service Factor 1.4
Insulation Class Class B
Mounting C-Face
Cross Reference T3102 JM3115 101638 J043 V56T34D5350
Adding to cart… The item has been added
Description
  • 1 hp 3600/2850 RPM, 4.3-4.0/2.0 amps 208-230/460 Volts 60 Hz 3-Phase
  • NEMA 56J frame, C-face, Threaded Stainless Steel Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.4, Overload protection = Auto
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

Motor for general purpose pump applications using three phase power with a C-face mount.  Threaded shaft, Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. H506


Specifications
Voltage 208/230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56J
Enclosure ODP
Hertz 60 Hz
Amperage 4.0/2.0 Amps
Bearings Ball Bearings
Service Factor 1.4
Insulation Class Class B
Mounting C-Face
Cross References

T3102 JM3115 101638 J043 V56T34D5350

!
