113590.00 Leeson | 1 hp 3600 RPM 56C Frame TENV 230/460V Wash Down Duty
113590.00 Leeson | 1 hp 3600 RPM 56C Frame TENV 230/460V Wash Down Duty

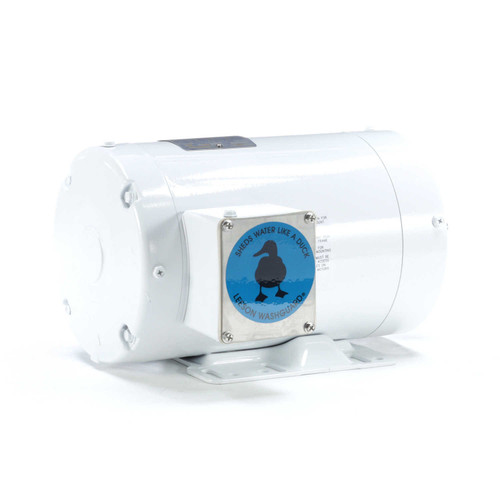

This Leeson 1 hp, 3600 RPM three-phase motor is designed for wash down duty applications and replaces the Marathon N601, 056T34V5307 model. It features a robust 56C frame and is ideal for environments requiring moisture resistance and durability.
Key Specifications
- Horsepower: 1 hp
- RPM: 3600
- Voltage: 230/460 V
- Amperage: 2.6/1.3 A
- Enclosure: Totally Enclosed Non-Vented (TENV)
- Frame / Diameter: NEMA 56C
- Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
Product Features & Fitment
This Leeson Washguard motor includes a rigid base for stable mounting and features a stainless steel shaft, conduit box cover, nameplate, and fan guard for enhanced corrosion resistance. It incorporates special gaskets, slingers, seals, and four endshield drains to provide superior moisture protection. The motor is coated with durable Rust-Oleum white epoxy paint and utilizes the IRIS insulation system with Class F insulation for reliable performance in harsh wash down environments.
Cross Reference
- Marathon N601, 056T34V5307
Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1 HP |
| RPM | 3600 |
| Phase | Three Phase |
| Frame | 56C |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 2.6/1.3 Amps |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
- Marathon N601, 056T34V5307
