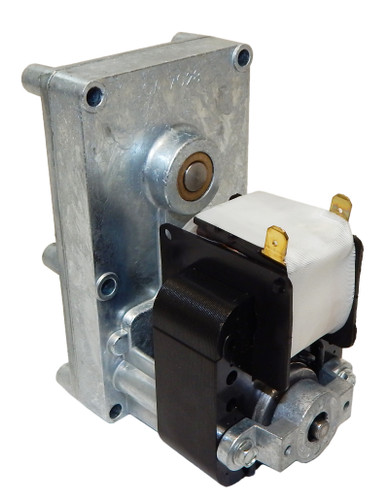

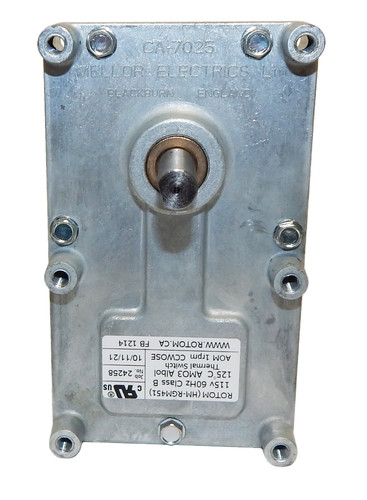

1 RPM PELLET STOVE AUGER REPLACEMENT MOTOR
- 0.19 amps, 115 Volts - Spade Terminals
- Shaft: 3/8" x 1" with flat - No hole in shaft for pin
- 6 bolt holes: 8-32
- Torque: 100 inch pounds
- Continuous Duty
- Rotation: Clockwise facing shaft
- Motor is reversible mechanically
Fits the following Pellet Stoves
Whitfield
Advantage I, II, II-T, III, II-T Classic (WP2), Advantage Plus (WP7), Optima 2, Optima 3, Profile 20, Profile 30, Cascade (WP5), Explorer, Frontiersman, T300P (T301P, T305P, T308P), Legend (WP1), Prodigy I, II (WP3), Quest, Quest Plus (WP4), Waterford Erin, Renaissance
4515U1-063, 4515UI-063, 4515UP-075
Austroflamm
Integra, Wega
Avalon
900 Pellet Insert (up to serial #11491), 900PS, Arbor, Astoria Bay PI, Astoria PS, Avanti PI, Avanti PS, Avalon AGP - Metering Motor, Newport Bay PI, Newport PS
Enviro
EF1, EF2, EF3, EF4, EF5 Evolution, Empress FS, Empress FPI, M55 (agitator motor), Meridian, Milan, Mini, Solus, Omega (1-rpm versions only), Windsor
Hudson River
Chatham, Davenport, Kinderhook
Vistaflame
VF 55 (agitator motor), VF 100, VF Windsor
Kozi
100, 100I, Baywin, KSH, Previa
Lopi
Fox Fire 400 PS, Fox Fire 400 PI (up to serial # 17699), Foxfire PS, Elan, Heritage Bay PS, Heritage Bay PI, Lopi AGP (metering motor), Leyden PS, Pioneer Bay PI, Pioneer PS, Yankee Bay PI, Yankee PS
Regency
GF55, FGI55, GC60 (agitator motor), PR67
Quest
93-0194, 12046300, ECM-6, V07524ACD9
Lennox Hearth
6216, 6807
US Stove
80606
Fits many other brands: Traditions & Profile Series Stoves, Avalon, Austroflamm Breckwell, Merkle-Korff, National Steel Crafters, Earth Stove, Envirofire, Lopi, Pellet Master
Cross Ref Models: R7-RGM451, HM-RGM451, V08038AA09, CAR003, PV003, MH003, PU-047040, B4415UI, PH-CCW1
******
If you need CCW rotation: You would remove the screws that hold the motor to the gear box. 2 of the screws go thru the bearing housing, you remove those leaving the shaft/rotor in place. Turn the motor coil around and reassemble.
