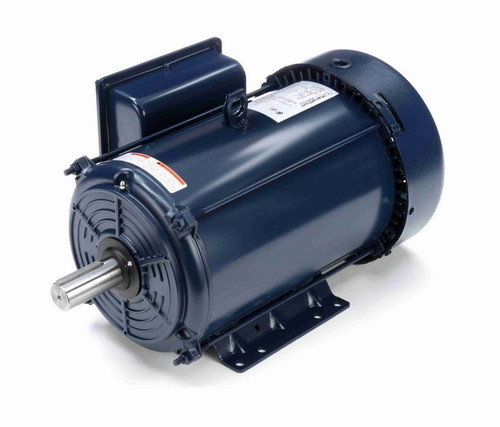

I217 Marathon 10 hp 1800 RPM 215T Frame 230V Totally Enclosed Marathon Electric Motor

This Marathon 10 hp single-phase electric motor is designed for general-purpose industrial applications requiring reliable performance and durability. It serves as a direct replacement for motors with similar specifications, offering a robust solution for various machinery needs.

Key Specifications

• Horsepower: 10 hp
• RPM: 1800
• Voltage: 208-230 V, 60 Hz
• Amperage: 41.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 215T
• Shaft Dimensions: 1 3/8" diameter x 3 3/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with Class F insulation and a rigid base mount for stable installation. It includes a wiring diagram on the nameplate to facilitate proper electrical connections. The motor does not include overload protection and has a service factor of 1.0.

Warranty

1 Year Manufacturer Warranty
