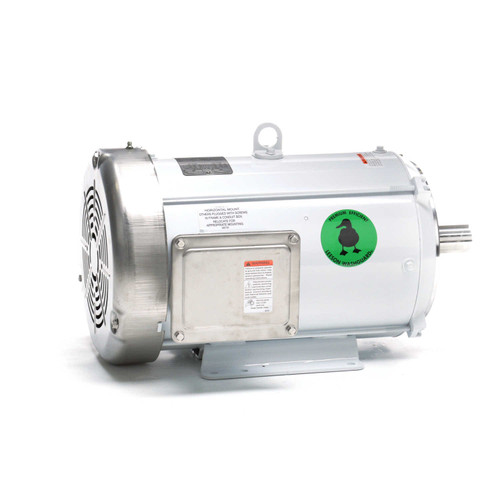

140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty

Leeson

140821.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC 230/460V Wash Down Duty

(No reviews) Write a Review
$2,515.05
$1,950.98
SKU 140821.00
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html

CURRENTLY OUT OF STOCK

Description
  • 10 hp 1800 RPM, 26.8/13.4 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 215TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Leeson Washguard Motor - Rigid Base - Premium Efficient
  • Service Factor: 1.25 - overload protection = None - Class F Insulation
  • TEFC = Totally Enclosed Fan Cooled
  • 1 Year Manufacture Warranty

Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.

C215T17WK9A, 140821.00, Replaces G140464.00
Replaces Marathon N619, N619A, N619B, 215TTWR4026, 215TTWRD6026, 215TTWR6026
