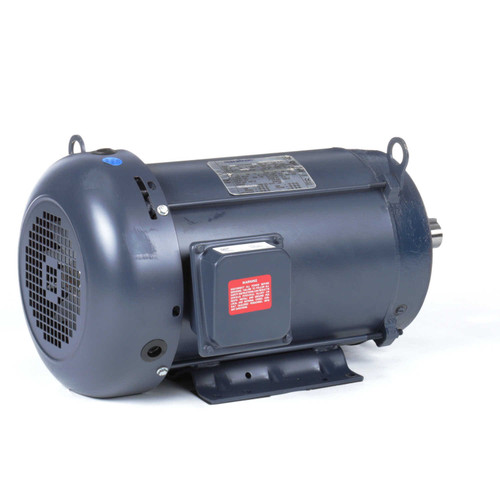

GT1219A Marathon 10 hp 1800 RPM 215TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

GT1219A Marathon 10 hp 1800 RPM 215TC Frame TEFC C-Face (Rigid Base) 230/460V Marathon Electric Motor

The GT1219A is a general-purpose, three-phase Marathon electric motor designed for various industrial applications requiring a 10 hp motor with a C-face mount. It replaces Leeson models 170167.00, G150167, and 199058.00, offering reliable performance in demanding environments.

Key Specifications

• Horsepower: 10 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 25.0/12.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

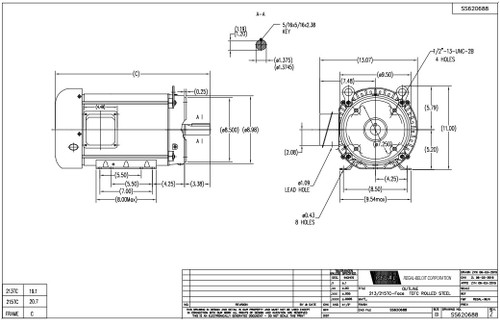

• Frame / Diameter: NEMA 215TC
• Shaft Dimensions: 1 3/8" Diameter x 3 3/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount combined with a C-face for versatile installation options. The shaft includes a keyway and the face has threaded bolt holes for mounting pumps or gearheads directly to the motor. A wiring diagram is provided on the motor nameplate to assist with electrical connections.

Cross Reference

• Leeson 170167.00, G150167, 199058.00

Warranty

1 Year Manufacturer Warranty
