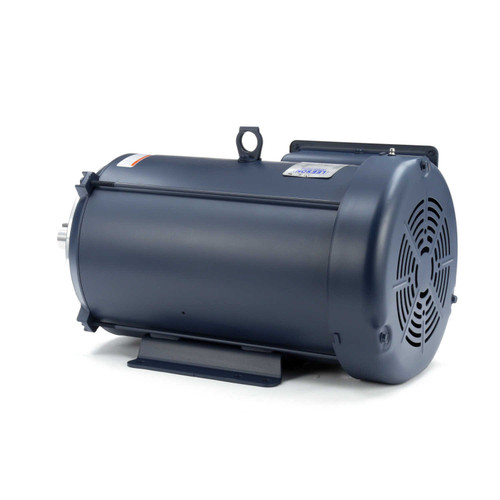

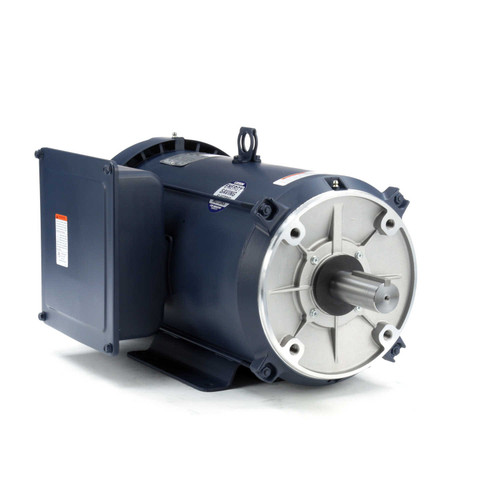

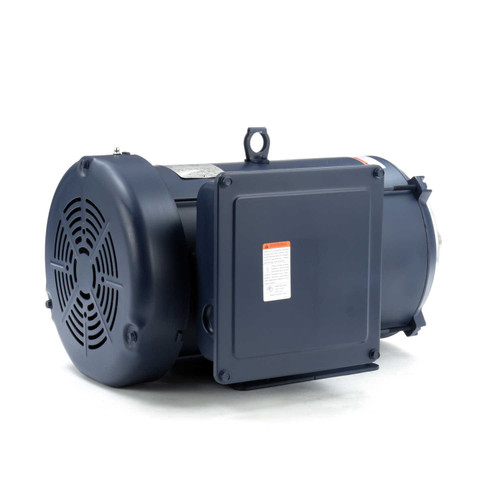

140678.00 Leeson | 10 hp 1800 RPM 215TC Frame TEFC C-Face- Rigid Base 230V

SKU:
140678
Weight:
159.00 LBS
Shipping:
Calculated at Checkout
Was: $2,032.00
Now: $1,565.30
Adding to cart… The item has been added
  • 10 hp 1800 RPM, 40.0 amps 230 Volts 60hz. single Phase Motor
  • NEMA 215TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C215K17FK4A, 140678.00
