120274.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face- Rigid Base 115/230V

120274.00 Leeson | 2 hp 1800 RPM 145TC Frame TEFC C-Face Rigid Base Motor

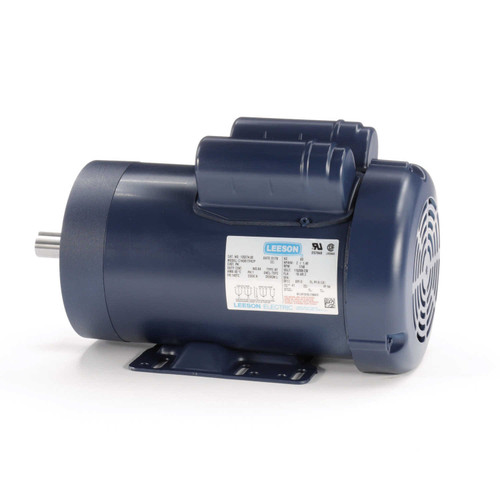

This Leeson 2 hp single-phase electric motor is designed for general-purpose applications requiring a C-face mount. It is suitable for replacing or installing in systems needing a rigid base mount with a keyed shaft and a totally enclosed fan-cooled (TEFC) enclosure.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 18.4/9.2 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 145TC
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

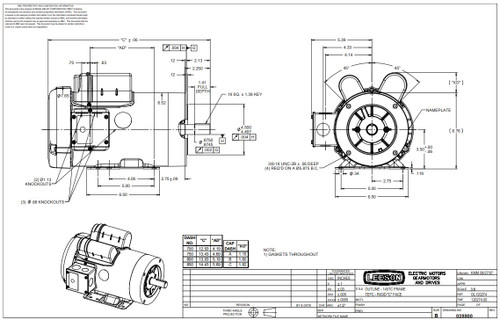

The motor features a rigid base mount combined with a C-face for versatile installation options. The shaft includes a keyway for secure coupling, and the motor face has four threaded bolt holes spaced 5 7/8" on center for mounting pumps or gearheads. A wiring diagram is provided on the motor nameplate to assist with installation.

Warranty

1 Year Manufacturer Warranty
