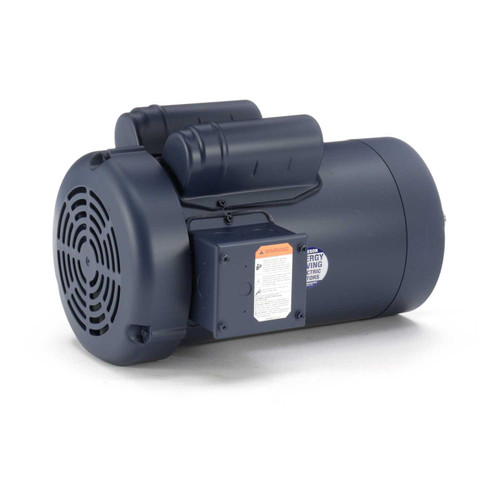

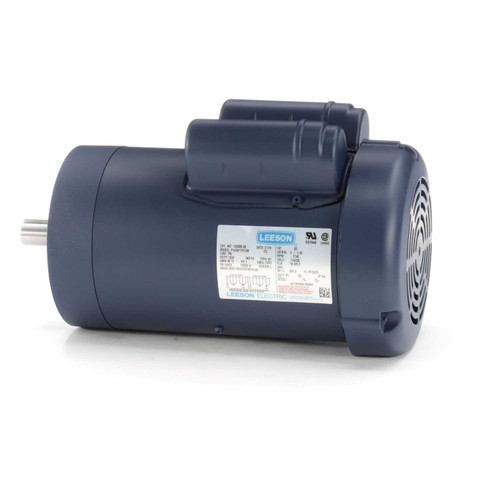

2 hp 1800 RPM 145TC Frame TEFC C-Face (no base) 115/230V Leeson Electric Motor # 120060

SKU:
120060
Manufacturer
Leeson
Weight:
45.00 LBS
Shipping:
Free Shipping
$586.10
  • 2 hp 1800 RPM, 20.0/10.0 amps 115/230 Volts 60hz. single Phase Motor
  • NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.0 - overload protection =Manual
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
  • 1 Year Manufacture Warranty

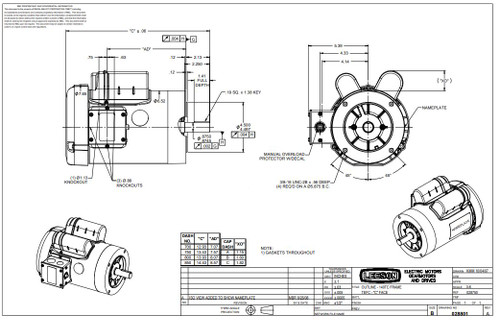

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

P145K17FC2M, 120060.00
