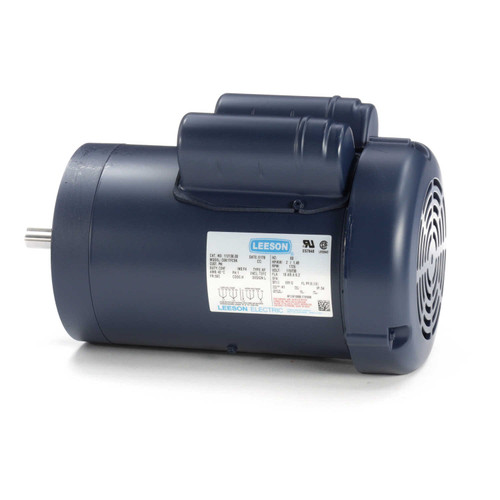

112136.00 Leeson | 2 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/230V

SKU:: 112136
UPC:
Availability:: Subject to Availability
Weight:: 44.00 LBS
Width:: 20.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/230V
Horsepower:: 2 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56C
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 18.4/9.2 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class F
Mounting:: C-Face

Current Stock:

Was: $1,041.90

Now: $883.43

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

112136.00 Leeson | 2 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/230V

This Leeson 2 hp single-phase electric motor is designed for general-purpose applications requiring a C-face mount. It features a totally enclosed fan-cooled (TEFC) design and is suitable for replacing or installing in equipment needing a 56C frame motor without a base.

Key Specifications

Horsepower: 2 hp
RPM: 1800
Voltage: 115/230 V
Amperage: 18.4/9.2 A
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 56C Frame
Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

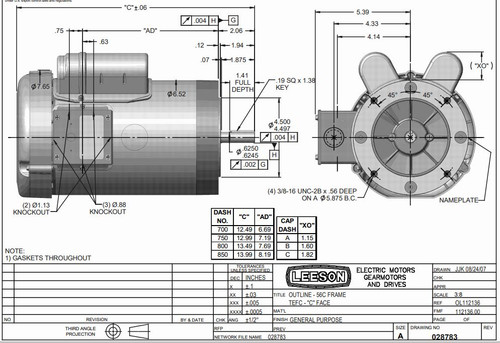

The motor has a round body with no base mounting, allowing flexible installation options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center for mounting pumps or gear heads. The shaft features a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for easy electrical connections.
