110420.00 Leeson | 1.5 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

110420.00 Leeson | 1.5 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

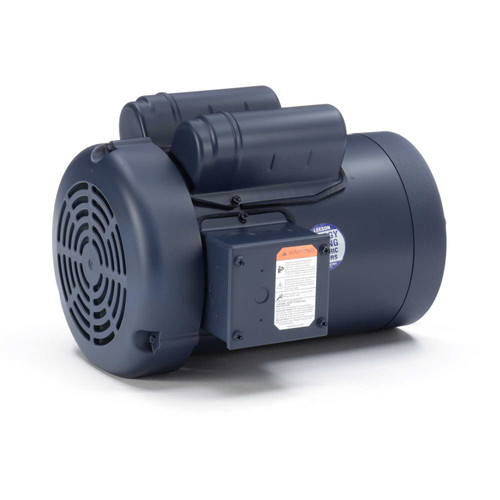

This Leeson 1.5 horsepower single-phase motor is designed for general-purpose applications requiring a C-face mount. It features a totally enclosed fan-cooled (TEFC) design suitable for various industrial and HVAC equipment replacements.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 17.2/8.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

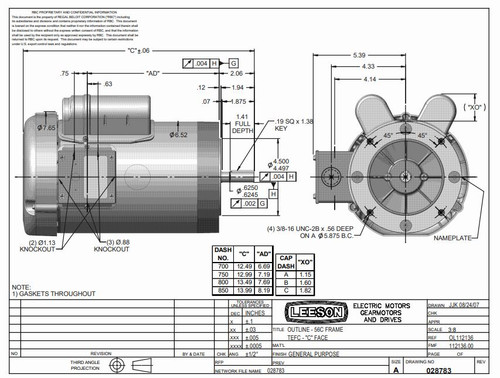

This motor features a round body design without a base, allowing flexible installation options. It includes a C-face mount with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gear heads. The shaft is keyed for positive drive connection, and the wiring diagram is provided on the motor nameplate for easy electrical hookup.

Warranty

1 Year Manufacturer Warranty
