- 1.5 hp 3600 RPM, 17.0/8.5 amps 115/208-230 Volts 60hz. single Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0 - overload protection = Manual
- No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty

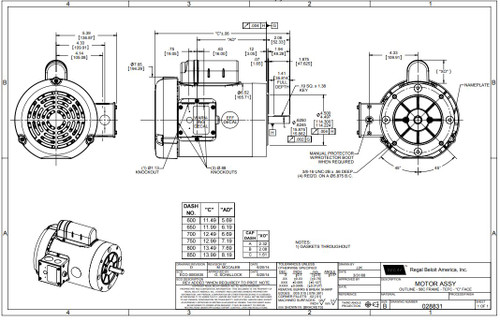

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
