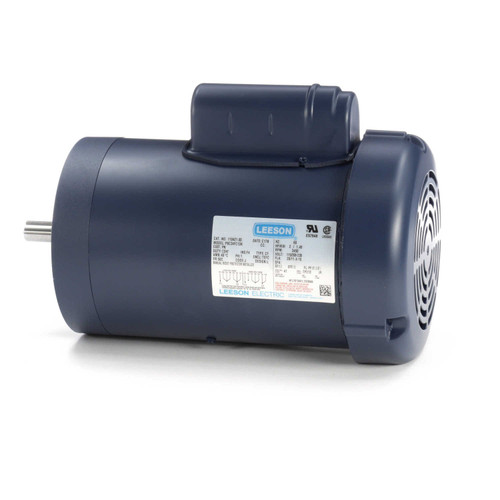

110421.00 Leeson | 2 hp 3600 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

• 2 hp 3600 RPM, 20.0/10.0 amps 115/208-230 Volts 60hz. single Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.0 - overload protection = Manual
• No Base - Reversible - Round Body Motor - Ball Bearings - Class F Insulation
• 1 Year Manufacture Warranty

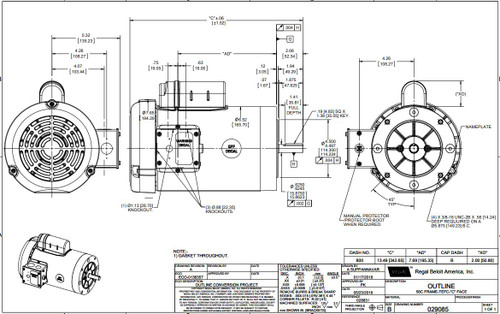

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. This is an excellent motor for woodworking equipment such as table saws, planners, etc. Totally Enclosed Fan Cooled design prevent motor problems caused by wood dust and shavings. Motor has a keyed shaft and is electrically reversible.

P6C34FC13K, 110421.00
