This Leeson 1/2 horsepower, 3600 RPM single-phase motor is designed for general-purpose applications requiring a C-face mount. It replaces motors with similar specifications and is suitable for driving pumps, gearheads, and other equipment needing a keyed shaft and TEFC enclosure.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 3600
• Voltage: 115/208-230V, 60 Hz
• Amperage: 7.0/3.5 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

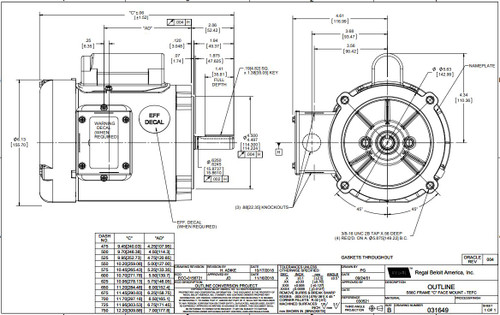

This motor features a round body design without a base, allowing flexible mounting options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gearheads. The wiring diagram is provided on the motor nameplate for easy installation. The motor has Class B insulation and a service factor of 1.15 but does not include overload protection.

Warranty

1 Year Manufacturer Warranty
