110419.00 Leeson | 1.5 hp 3600 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

110419.00 Leeson | 1.5 hp 3600 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

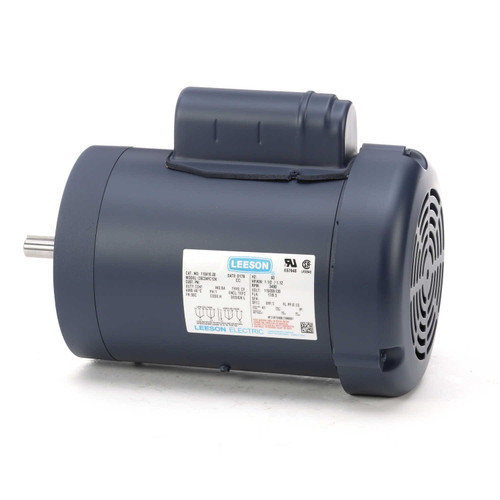

This Leeson 1.5 hp single-phase electric motor operates at 3600 RPM and is designed for general-purpose applications requiring a C-face mount. It replaces Marathon models C1424 and 5KC49SN2158, making it suitable for pump or gear head installations.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 17.0/8.5 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

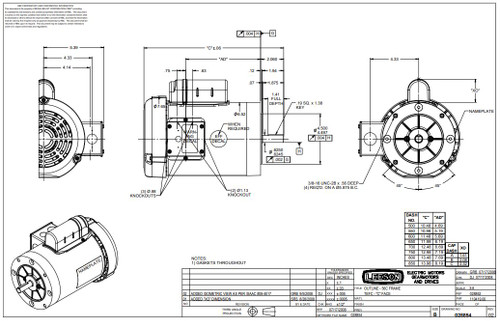

This motor features a round body design without a base, allowing flexible mounting options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft for secure attachment of pumps or gear heads. The shaft is keyed for positive drive connection. Wiring diagrams are provided on the motor nameplate for easy installation.

Cross Reference

• Marathon C1424, 5KC49SN2158

Warranty

1 Year Manufacturer Warranty
