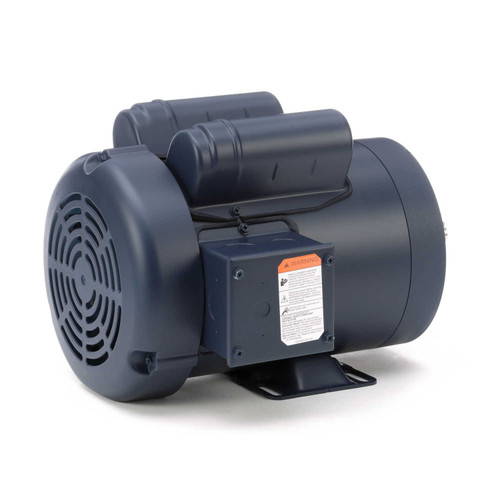

115024.00 Leeson | 1.5 hp 3600 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230V

115024.00 Leeson | 1.5 hp 3600 RPM 56C Frame TEFC C-Face Rigid Base Motor

This Leeson 1.5 hp single-phase electric motor is designed for general-purpose applications requiring a rigid base mount with a C-face configuration. It is suitable for replacing motors in pumps, gear heads, and other machinery needing a 56C frame with a keyed shaft.

Key Specifications

• Horsepower: 1.5 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 12.4/6.2 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

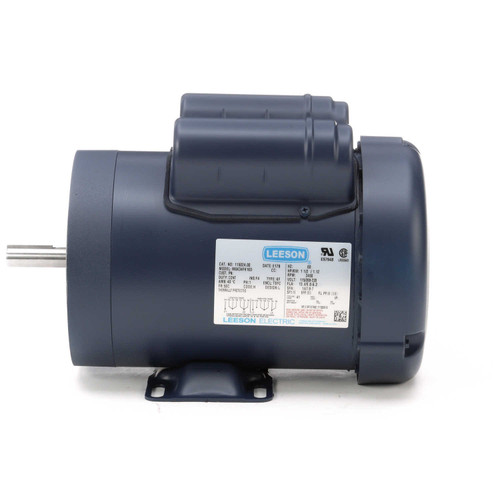

The motor features a rigid base mount combined with a C-face, providing versatility for various mounting configurations. The shaft includes a keyway for secure coupling, and the C-face has four threaded bolt holes spaced 5 7/8" on center for easy attachment of pumps or gear heads. A wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
