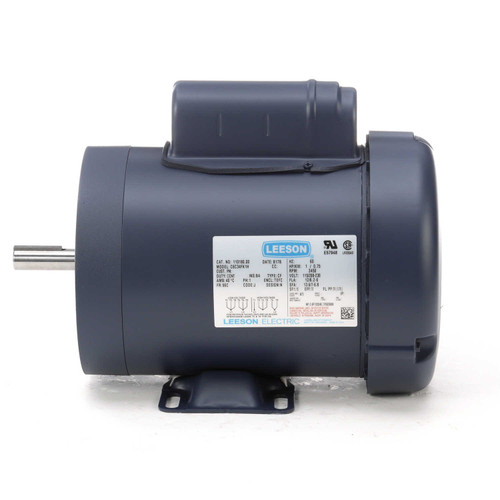

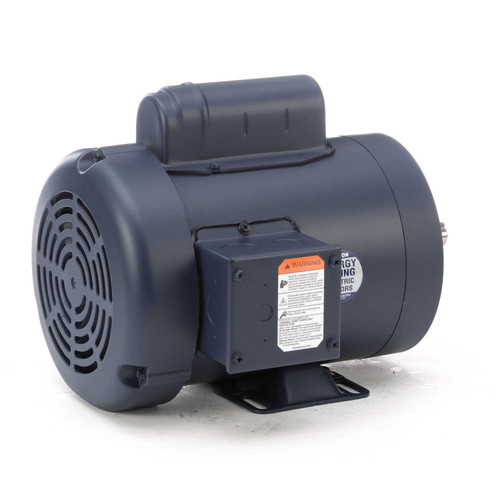

110180.00 Leeson | 1 hp 3600 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230V

• 1 hp 3600 RPM, 12.0/6.0 amps 115/208-230 Volts 60hz. single Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15 - overload protection = None
• Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
• 1 Year Manufacture Warranty

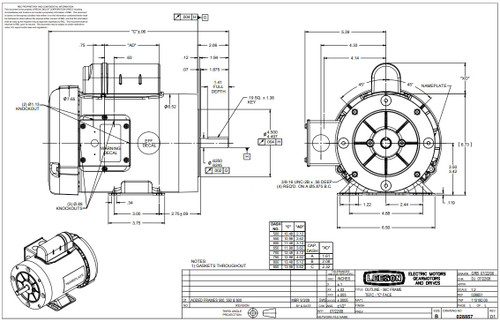

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6C34FK1H, 110180.00
