112135.00 Leeson | 3/4 hp 3600 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230V

112135.00 Leeson 3/4 hp 3600 RPM 56C Frame TEFC C-Face Rigid Base Motor 115/208-230V

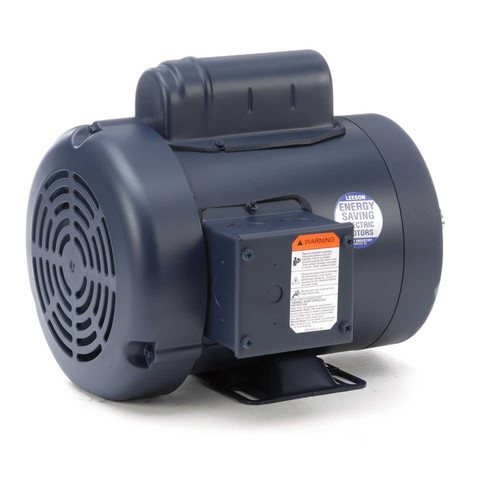

This Leeson 3/4 horsepower single-phase motor is designed for general-purpose applications requiring a reliable electric motor with a C-face mount. It is suitable for replacing or installing in equipment needing a 56C frame, TEFC enclosure, and rigid base mounting.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 3600
• Voltage: 115/208-230 V
• Amperage: 10.0/5.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C

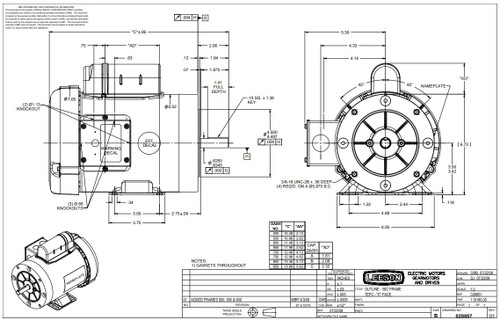

• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount combined with a C-face mount, providing versatile installation options. The shaft includes a keyway and the C-face has four threaded bolt holes spaced 5 7/8" on center for secure mounting of pumps or gear heads. A wiring diagram is provided on the motor nameplate for easy electrical connections.

Warranty

1 Year Manufacturer Warranty
