102865.00 Leeson | 1/2 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

102865.00 Leeson | 1/2 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

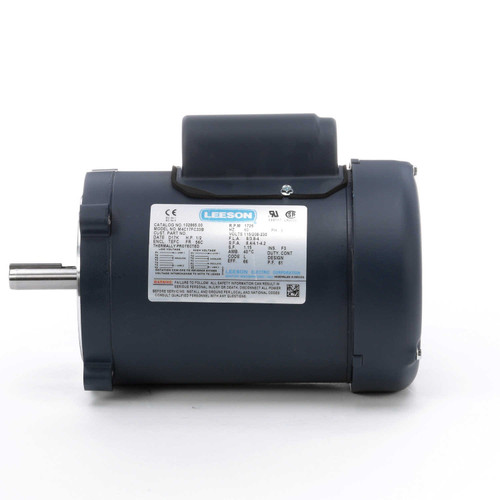

This Leeson 1/2 horsepower single-phase electric motor is designed for general-purpose applications requiring a C-face mount. It is suitable for replacing or upgrading motors in pumps, gear heads, and other machinery needing a 56C frame, totally enclosed fan-cooled (TEFC) motor.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/208-230V
• Amperage: 8.0/4.0 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

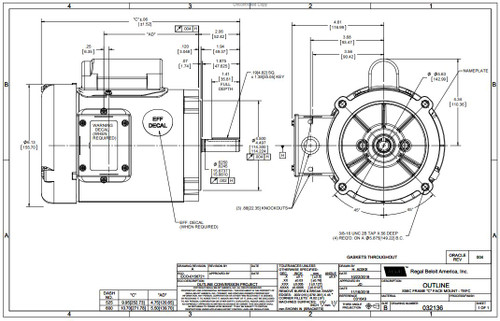

This round body motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. It comes without a base, requiring mounting directly via the C-face. The shaft includes a keyway for secure coupling, and the motor is equipped with Class F insulation and a manual overload protection service factor of 1.15. Wiring details are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
