101766.00 Leeson | 1/3 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

101766.00 Leeson | 1/3 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

This Leeson 1/3 horsepower single-phase electric motor is designed for general-purpose applications requiring a C-face mount. It features a totally enclosed fan-cooled (TEFC) design and a round body without a base, suitable for direct mounting of pumps or gearheads.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 6.6/3.3 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

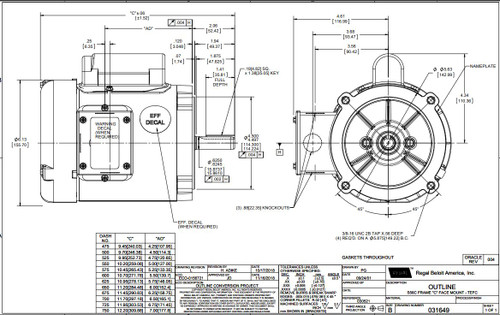

The motor features a round body with no base, allowing flexible installation options. It includes a keyed shaft and four threaded bolt holes on the C-face mounting plate, spaced 5 7/8" on center across the shaft, enabling secure attachment of pumps or gearheads. Wiring diagrams are provided on the motor nameplate for easy electrical connections.

Warranty

1 Year Manufacturer Warranty
