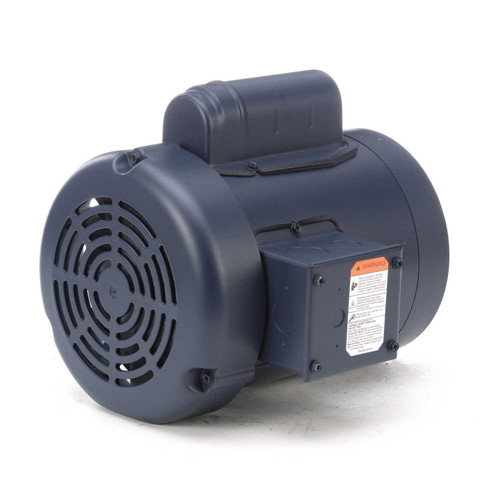

110308.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

SKU:: 110308
UPC:
Weight:: 31.00 LBS
Width:: 15.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 3/4 HP
RPM:: 1800
Phase:: Single Phase
Frame:: 56C
Enclosure:: TEFC
Hertz:: 60 Hz
Amperage:: 10.8/5.4 Amps
Bearings:: Ball Bearings
Service Factor:: 1.15
Insulation Class:: Class B
Mounting:: C-Face

Current Stock:

Was: $637.10

Now: $539.58

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

110308.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face (no base) 115/208-230V

This Leeson 3/4 horsepower single-phase electric motor is designed for general-purpose applications requiring a C-face mount. It replaces similar motors with a 56C frame and is suitable for various industrial and HVAC equipment.

Key Specifications

Horsepower: 3/4 hp
RPM: 1800
Voltage: 115/208-230 V
Amperage: 10.8/5.4 A
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame / Diameter: NEMA 56C Frame
Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor features a round body design without a base, allowing flexible mounting options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gearheads. The shaft has a keyway for positive drive connection. Wiring diagrams are provided on the motor nameplate for easy installation.
