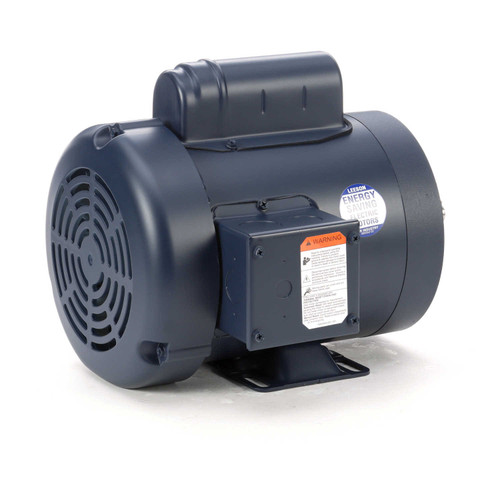

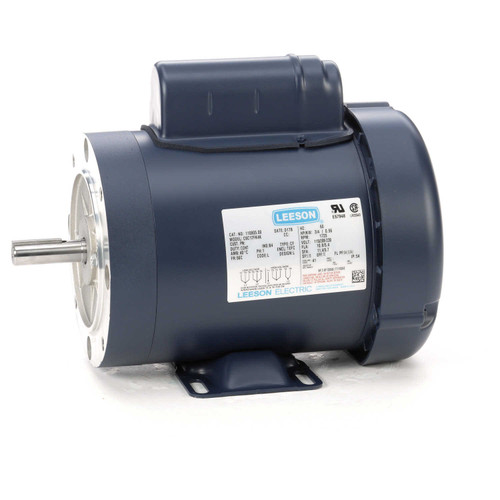

110905.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230V

110905.00 Leeson | 3/4 hp 1800 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230V

SKU:
110905
Weight:
29.00 LBS
Width:
15.00 (in)
Height:
11.00 (in)
Depth:
11.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
115/208/230V
Horsepower:
3/4 HP
RPM:
1800
Phase:
Single Phase
Frame:
56C
Enclosure:
TEFC
Hertz:
60 Hz
Amperage:
10.8/5.4 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class B
Mounting:
C-Face
Was: $649.75
Now: $550.62
Adding to cart… The item has been added
  • 3/4 hp 1800 RPM, 10.8/5.4 amps 115/208-230 Volts 60hz. single Phase Motor

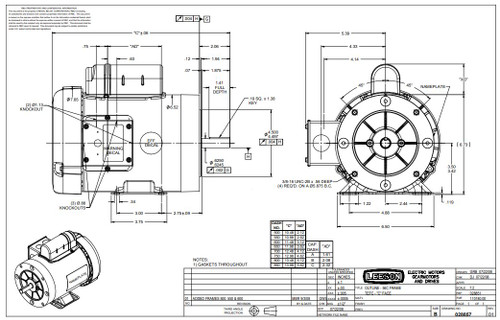

  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

C6C17FK4K, 110905.00

!
