110908.00 Leeson | 1 hp 1800 RPM 56C Frame TEFC C-Face- Rigid Base 115/208-230V

110908.00 Leeson | 1 hp 1800 RPM 56C Frame TEFC C-Face Rigid Base Motor

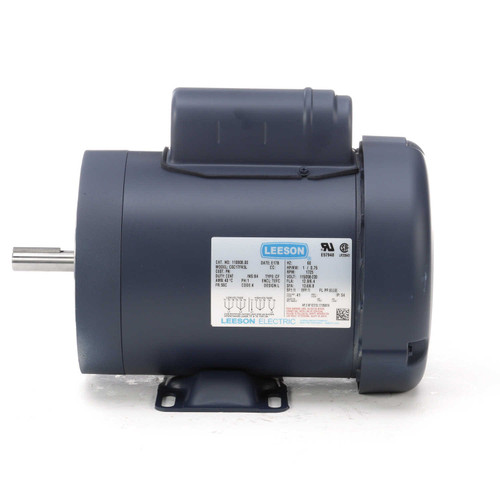

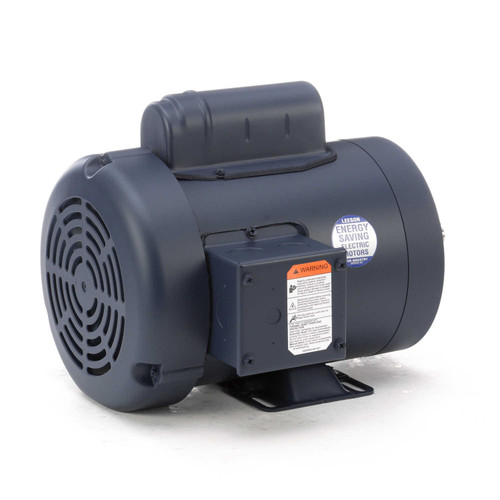

This Leeson 1 hp single-phase electric motor operates at 1800 RPM and is designed for general-purpose applications requiring a C-face mount. It replaces Marathon model C376 and 5KC49TN0067, providing reliable performance in various industrial settings.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 115/208-230 V
• Amperage: 12.8/6.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

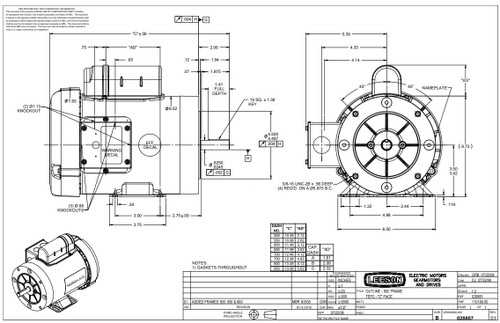

This motor features a rigid base mount with a C-face configuration, including four threaded bolt holes spaced 5 7/8" on center across the shaft for easy attachment of pumps or gear heads. The shaft includes a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate to facilitate installation.

Cross Reference

• Marathon C376, 5KC49TN0067

Warranty

1 Year Manufacturer Warranty
