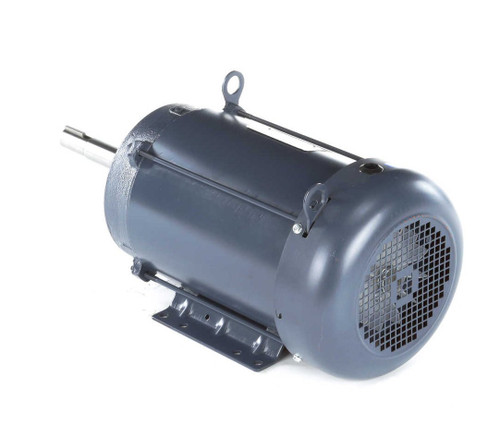

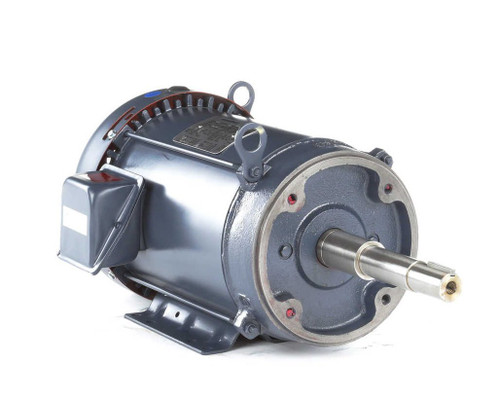

GT3418A Marathon 10 hp 3600 RPM 215JP Frame TEFC 230/460V Marathon Close Couple Motor

GT3418A Marathon 10 hp 3600 RPM 215JP Frame TEFC 230/460V Marathon Close Couple Motor

The GT3418A is a 10 horsepower, 3600 RPM close-coupled pump motor designed for continuous duty applications. It replaces part numbers 215TTFBD6012, 199788.00, 199788, B199788.00, B199788, and Dayton 29FH36, making it suitable for direct replacement in compatible pump systems.

Key Specifications

• Horsepower: 10 hp
• RPM: 3600
• Voltage: 230/460V
• Amperage: 23.6/11.8 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: 215JP
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for secure mounting and is designed specifically for close-coupled pump installations. It includes a wiring diagram on the motor nameplate for easy electrical setup. The motor is built with Class F insulation and a service factor of 1.15 to ensure reliable, continuous operation in demanding environments.

Cross Reference

• 199788.00, 199788, B199788.00, B199788; Dayton 29FH36

Warranty

1 Year Manufacturer Warranty
