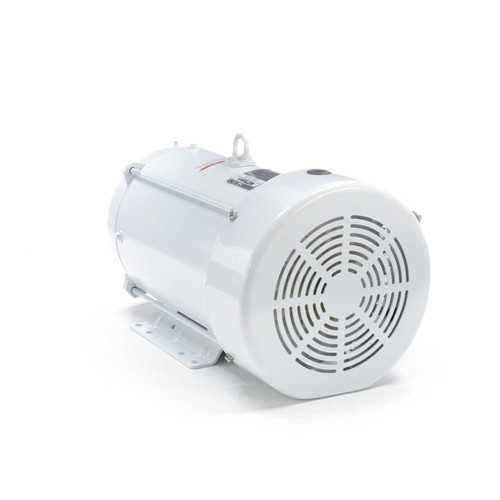

140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty
140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty

Leeson

140823.00 Leeson | 10 hp 3600 RPM 215TC Frame TEFC 230/460V Wash Down Duty

(No reviews) Write a Review
$2,946.27
$2,456.75
SKU 140823.00
UPC 6.92E+11
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 215TC
Enclosure TEFC
Hertz 60 Hz
Amperage 23.6/11.8 Amps
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 10 hp 3600 RPM, 23.6/11.8 amps 230/460 Volts 60hz. Three Phase Motor
  • NEMA 215TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Leeson Washguard Motor - Rigid Base - Premium Efficient
  • Service Factor: 1.15 - overload protection = None - Class F Insulation
  • TEFC = Totally Enclosed Fan Cooled
  • 1 Year Manufacture Warranty

Leeson's original moisture-shedding "duck" motor. Durable Rust Oleum White epoxy paint. Stainless steel shaft, conduit box cover, nameplate and fan guard. Special gaskets, slingers and seals. Four endshield drains. Moisture resistant interior components. IRIS insulation system.

C215T34WK9A, 140823.00, Replaces G140700.00

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
Voltage 230/460V
Horsepower 10 HP
RPM 3600
Phase Three Phase
Frame 215TC
Enclosure TEFC
Hertz 60 Hz
Amperage 23.6/11.8 Amps
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
