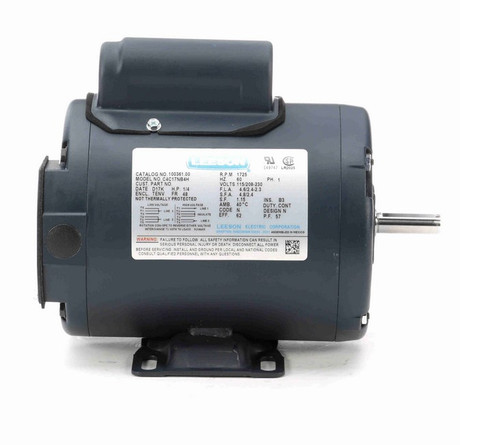

100361.00 Leeson 1/4 hp 1800 RPM 115/208-230V 48 Frame TENV Rigid Base Motor
(No reviews)
Write a Review
Write a Review
Leeson
100361.00 Leeson 1/4 hp 1800 RPM 115/208-230V 48 Frame TENV Rigid Base Motor
$370.30
$314.18
SKU
100361
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
1/4 HP
RPM
1800
Phase
Single Phase
Frame
48
Enclosure
TENV
Hertz
60 Hz
Amperage
2.3 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base
100361.00 Leeson 1/4 hp 1800 RPM 115/208-230V 48 Frame TENV Rigid Base Motor
This Leeson general-purpose motor delivers reliable 1/4 horsepower performance at 1800 RPM. Designed to replace similar single-phase capacitor start motors, it is ideal for various industrial and HVAC applications requiring a durable, rigid base motor.
Key Specifications
- Horsepower: 1/4 hp
- RPM: 1800
- Voltage: 115/208-230 V
- Amperage: 4.6/2.4-2.3 A
- Enclosure: Totally Enclosed Non-Ventilated (TENV)
- Frame / Diameter: NEMA 48 Frame
- Shaft Dimensions: 1/2" diameter x 1 1/2" long
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base for stable mounting and includes ball bearings for smooth operation. It operates on a single-phase capacitor start design with Class B insulation. The wiring diagram is conveniently located on the motor nameplate to assist with installation.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/4 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 48 |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 2.3 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
