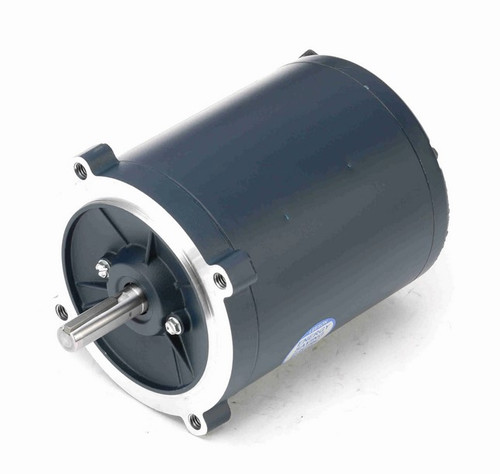

102863.00 Leeson 1/3 hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor

102863.00 Leeson 1/3 hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor

This Leeson 1/3 horsepower, three-phase electric motor is designed for general-purpose industrial applications requiring a reliable C-face mount motor. It is suitable for replacing or installing in equipment that demands a 1800 RPM motor with a totally enclosed non-ventilated enclosure.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 1.3/0.65 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings, Class B Insulation

Product Features & Fitment

The motor features a C-face mount with four threaded bolt holes spaced 3 3/4" on center across the shaft, allowing easy attachment of pumps or gearheads. It does not include a base, facilitating flexible installation options. A wiring diagram is provided on the motor nameplate for straightforward electrical connections.

Warranty

1 Year Manufacturer Warranty
