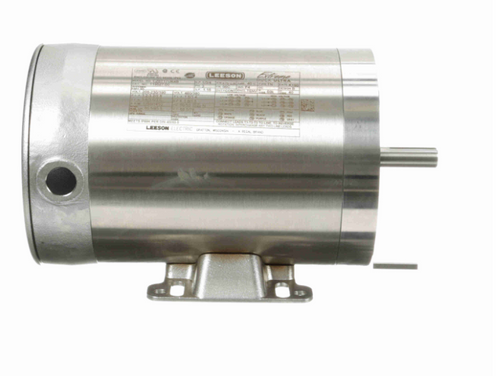

119527.00 Leeson SST Duck 1 hp 1800 RPM 208-230/460V 3-Phase 56C Frame TENV (base) Motor

• 1 hp 1800 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. Three Phase
• NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty,

Standard Stainless Steel wash-down motors are use in applications involving wet environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 119527.00
