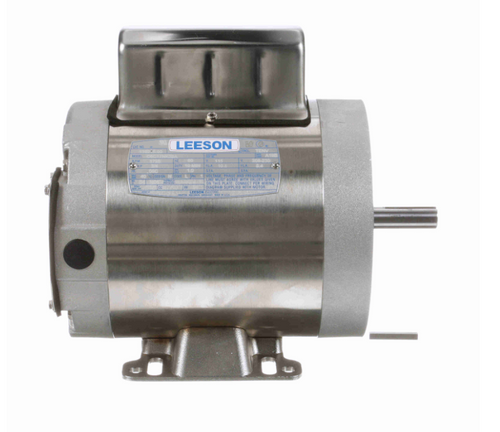

119216.00 Leeson SST Duck 3/4 hp 1800 RPM 208-230/460V 1-Phase 56C Frame TENV (base) Motor

• 3/4 hp 1800 RPM, 1.7-1.6/0.8 amps 208-230/460 Volts 60 Hz. Capacitor Start
• NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.0, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty,

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 119216.00
