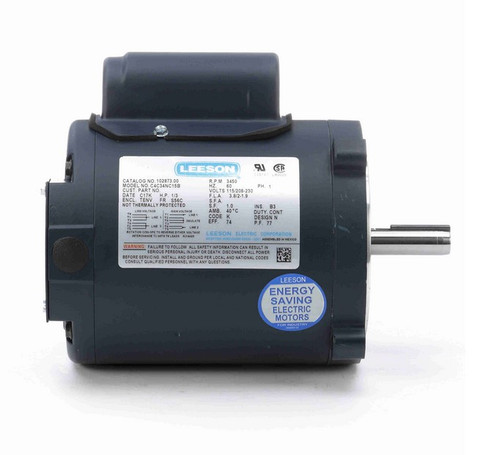

102873.00 Leeson 1/3 hp 115/208-230V 3600 RPM TENV 56C Frame Cap Start Motor

102873.00 Leeson 1/3 hp 115/208-230V 3600 RPM TENV 56C Frame Capacitor Start Motor

This Leeson general-purpose motor is designed for reliable operation in various industrial applications. It features a capacitor start and a totally enclosed non-ventilated (TENV) design, suitable for replacing or upgrading existing motors with similar specifications.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 3600
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 3.8/2.0-1.9 A
• Enclosure: Totally-Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: Keyed shaft, 1 7/8" length x 5/8" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. It operates at a single speed and does not include a base, facilitating flexible installation options in various equipment configurations.

Warranty

1 Year Manufacturer Warranty
