Leeson

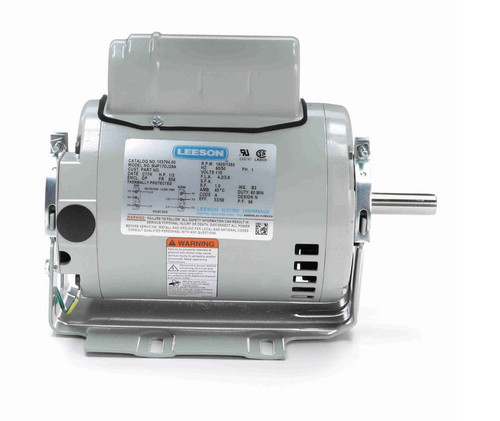

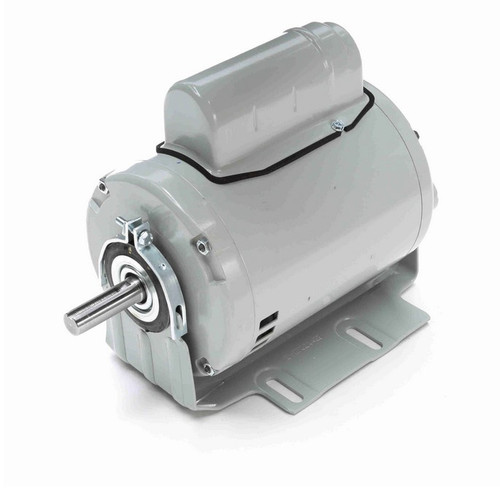

103794.00 Leeson 1/3 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Instant Reversing Motor
(No reviews)
Write a Review
Write a Review
Leeson
103794.00 Leeson 1/3 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Instant Reversing Motor
$525.55
$445.63
SKU
103794
UPC
6.92E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115V
Horsepower
1/3 HP
RPM
1800
Phase
Single Phase
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
4.2 Amps
Bearings
Ball Bearings
Service Factor
1.0
Insulation Class
Class B
103794.00 Leeson 1/3 hp 1800 RPM 115V 56 Frame (Resilient Base) ODP 1-Phase Instant Reversing Motor
This Leeson 1/3 horsepower, 1800 RPM, 115V single-phase motor is designed for quick reversing applications such as parking gates and doors. It replaces similar motors requiring moderate torque and instant reversing capabilities in industrial and commercial settings.
Key Specifications
- Horsepower: 1/3 hp
- RPM: 1800
- Voltage: 115 V
- Amperage: 4.2 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: 5/8" Diameter x 1 7/8" Length, keyed shaft
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a resilient base for stable mounting and is equipped with Class B insulation for durability. It includes manual overload protection and a wiring diagram located on the motor nameplate for easy installation. This motor is suitable for moderate torque applications requiring instant reversing functionality.
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115V |
| Horsepower | 1/3 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 4.2 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.0 |
| Insulation Class | Class B |
